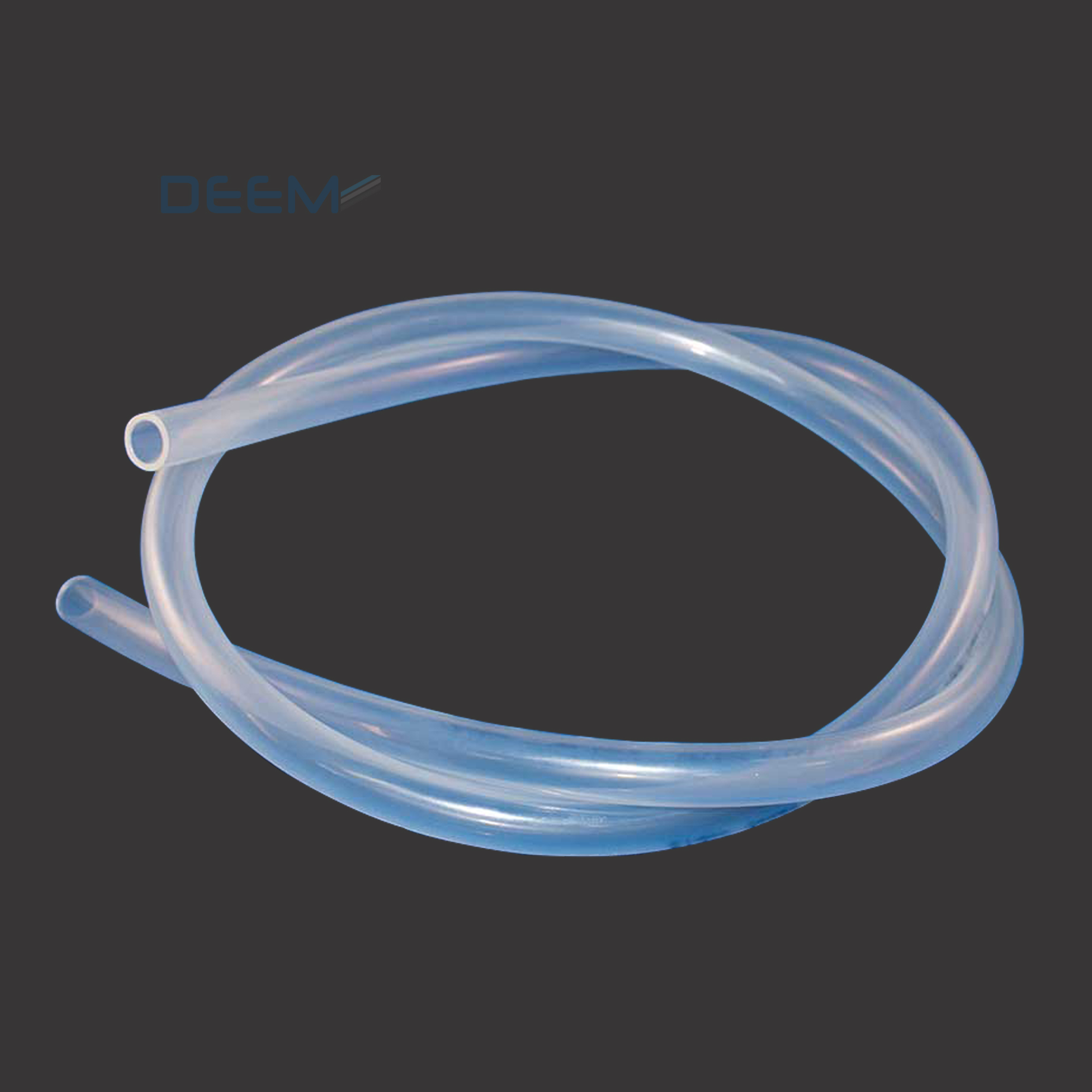

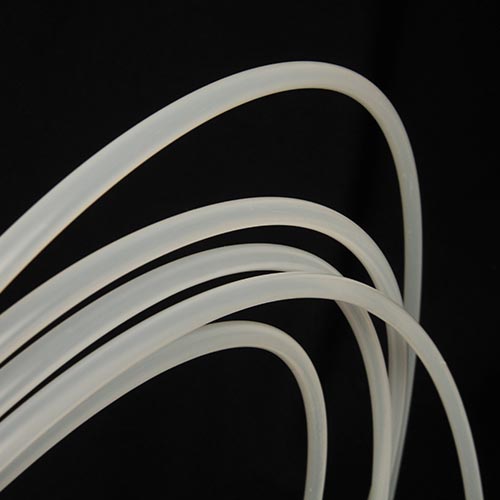

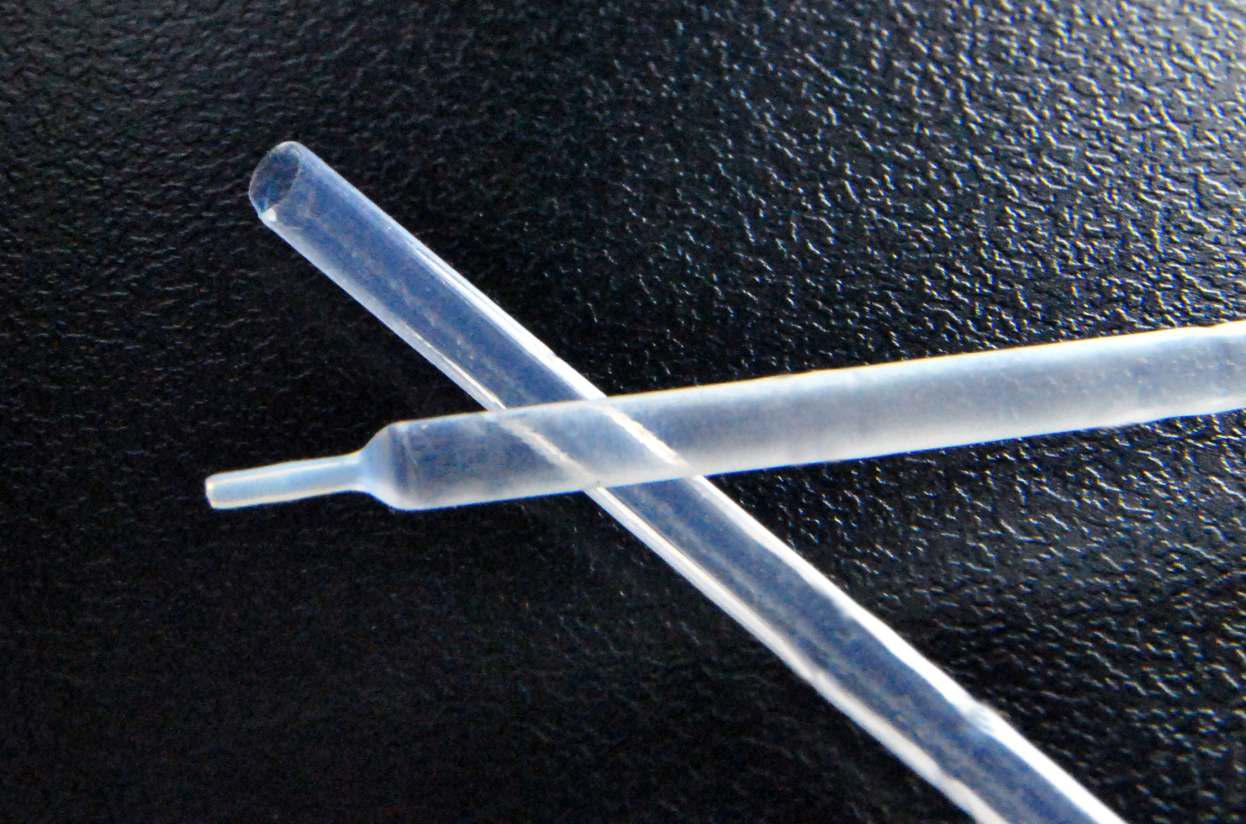

High performance PVDF heat shrink tubing, (Kynar?)
- BrandDEEM
- TypeDM-KY
Can be used for jacketing and bundling of wires to form light-duty harnesses, where low profile,
abrasion resistance, and flexibility are required. It reliably protect wires, solder joints terminals,
connections from most industrial fluid solvents and fluid chemicals.
Features
High flame resistance.
Excellent physical and electrical properties after
exposure to many chemicals and solvents.
Excellent transparency on clear version.
Various
Operating temperature: -55°C to +150°C (175°C)
Standard color: Shiny black, crystal clear, other colors on request.
Technical Data
| Property | Test Method | Typical Data |
| Operating temperature | IEC 216 | -55C to +150°C(175℃) |
| Tensile strength | ASTM D 2671 | ≥30 MPa |
| Elongation at break | ASTM D 2671 | ≥150% |
| Elongation at break after aging | 180°C/168hrs | ≥100% |
| Heat shock | 250°C/4 hrs. | No cracking |
| Cold bend | -55°C/4 hrs. | No cracking |
| Flammability | VW-1 | Pass |
| Yolume resistance | IEC 93 | ≥1014Ω.cm |
| Copper corrosion | 180℃/168hrs. | No corrosion |
| Copper stability | 180C/168hrs. | No sign of degradation |
Dimensions
size
As Supplied(mm)
After Recovery(mm)
3/64
1.2
0.6
0.26
0
200
1/16
1.6
0.8
0.26
0
200
3/32
2.4
1.2
0.26
0
200
1/8
3.2
1.6
0.26
0
100
3/16
4.8
2.4
0.26
0
100
1/4
6.4
3.2
0.26
0
100
3/8
9.5
4.8
0.30
-
50
1/2
12.7
6.4
0.30
-
50
3/4
19.1
9.5
0.41
-
50
1
25.4
12.7
0.41
-
50
11/2
38.1
19.1
0.51
-
50
*Spools as standards. 1 m. or 1,22 m. sticks, special spool lengths or cut pieces available on request.
